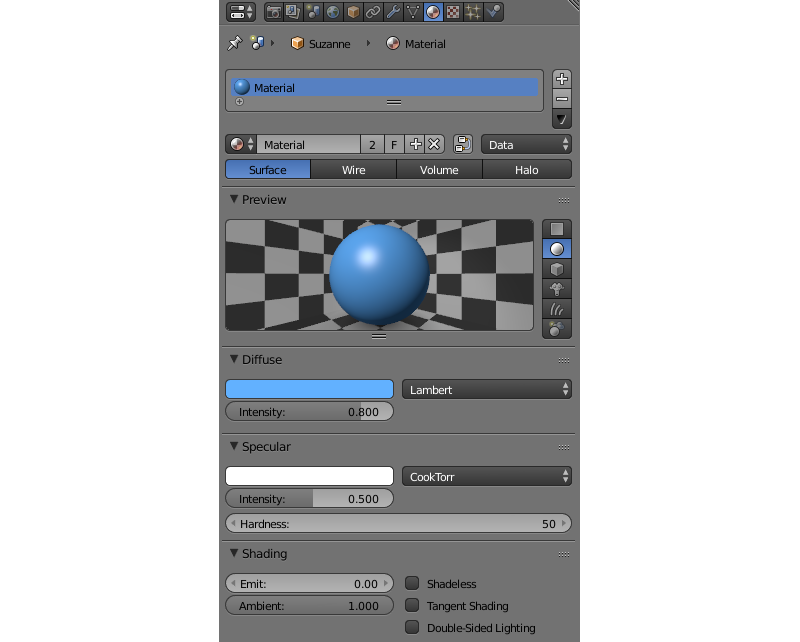

Materials¶

Types¶

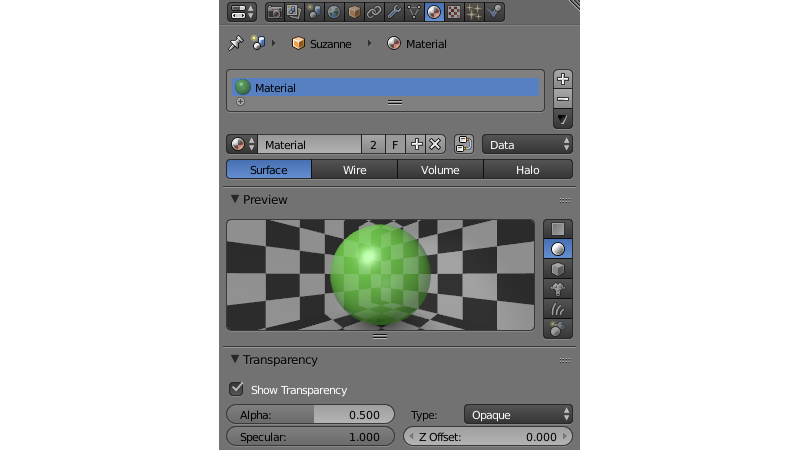

Transparency implementation type can be selected in the Transparency menu on the Properties > Material panel.

The engine supports all of the transparency types available in Blender.

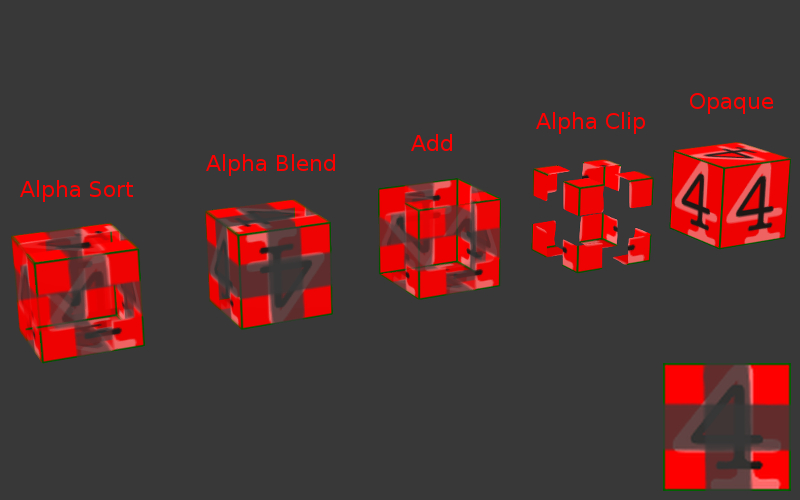

Available transparency types are (sorted in the ascending order by performance):

Alpha Sort

Transparent with a gradient. The engine sorts the triangles by camera distance in order to render overlapping transparent surfaces correctly. This operation is computationally expensive. It is recommended to use this feature for closed transparent geometry (bottle, car glass etc).

Alpha Anti-Aliasing

Transparent with a gradient. This feature is implemented with the help of the Alpha to coverage technique. It’s available only if MSAA is enabled (only on WebGL2-capable devices). The sorting of triangles is not performed. It is recommended to use this feature with a mask texture to visualize smaller details (tree leaves, grass).

Alpha Blend

Transparent with a gradient. The sorting of triangles is not performed. It is recommended to use this feature for unclosed transparent geometry (water surface, decals).

Add

Transparent with a gradient. The sorting of triangles is not performed. The engine disables writing to the depth buffer which causes transparent surfaces to be rendered in arbitrary order. It is recommended to use this feature for effects (particle systems, glowing beams).

Alpha Clip

Transparent without a gradient. The engine discards pixels if their alpha is less than 0.5. The sorting of triangles is not performed. It is recommended to use this feature with a mask texture to visualize smaller details (tree leaves, grass).

Opaque

Non-transparent. Alpha is ignored. This is the default value.

Additional Settings¶

Transparency > Show Transparency

Enabling the transparency checkbox is required for viewing transparent objects in Blender. The engine ignores this option - the Alpha Blend option is used instead.

Transparency > Alpha

Material transparency level. The engine ignores this parameter (in contrast to Blender) if there is a diffuse texture - the alpha channel values of a texture are used instead.

Transparency > Z Offset

This option explicitly specifies relative positioning order of objects with different materials with the purpose of depth sorting. The option can take both negative and positive values. The more distant the object is the lesser parameter value should be to provide correct rendering. The default value is 0.0.

Static Reflection¶

A surface reflects the same image no matter how the environment changes. For activation simply use the mirror map.

Dynamic Reflection¶

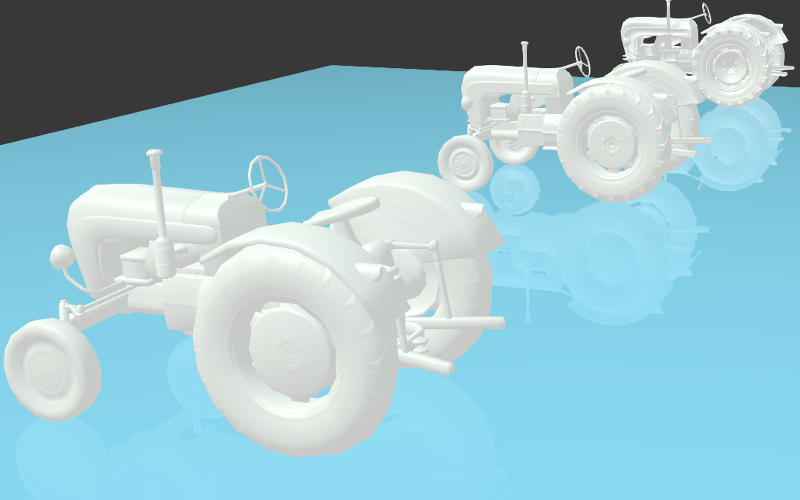

A surface reflects the selected objects in their current position. The engine supports planar and spherical reflections.

Fresnel effect for reflection¶

The Fresnel effect manifests itself as the dependency of the intensity of passing and reflected light on the incidence angle. If the angle of incidence is close to zero (i.e. light falls almost at right angle to the surface) the passing light portion is large and the reflected light portion is small. On the contrary if the angle of incidence is close to 90 degrees (i.e. light falls almost parallel to the surface) almost all light is reflected.

The engine uses the approximate Schlick’s formula:

R = R₀ + (1 − R₀)(1 - cos θ)^N, where

R - reflection coefficient,

R₀ - reflection coefficient in case of viewing at a right angle to the surface (i.e. when θ = 0),

θ - angle of incidence (which is equal to the angle of reflection under which light enters the camera), it is calculated by the engine in real-time,

N - exponent.

Settings¶

Fresnel effect can be set up both for static and dynamic reflection.

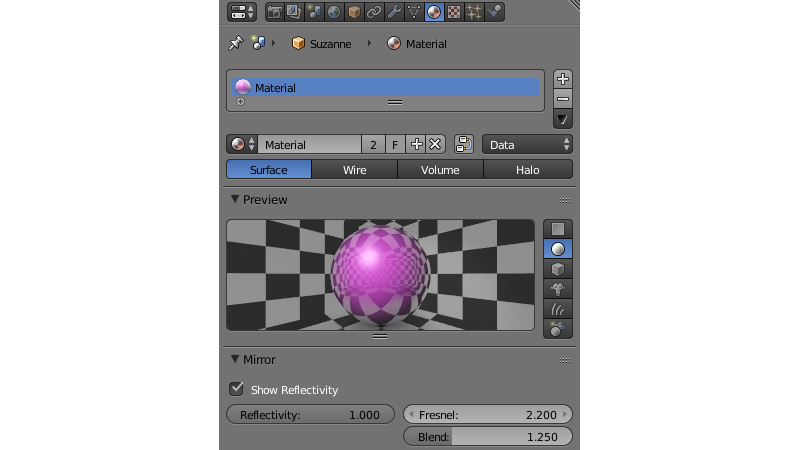

Material > Mirror > Fresnel

Fresnel power for reflection. This is the N exponent in the Schlick’s formula. In Blender it is limited to values from 0 to 5. If this parameter is equal to zero the Fresnel effect is not observed and the full reflection at all angles occurs. If this parameter is greater than zero, the material is less reflective when viewing surfaces at angles which are close to the right angle. The bigger this parameter is the bigger is the angle deviation from the right angle for which the Fresnel effect is observed.

Material > Mirror > Blend

Fresnel factor for reflection. It is reduced to R₀ in the Schlick’s formula by the following expression: R₀ = 1 - Blend / 5. In Blender it is limited to values from 0 to 5. This parameter defines the Fresnel effect intensity: the bigger the Blend factor is, the more is the Fresnel effect influence. If it is equal to zero the Fresnel effect is not observed.

Activation¶

Select the Halo type under the Materials tab. It’s also recommended to select the transparency type with a gradient (Add, Alpha Blend or Alpha Sort).

Additional Settings¶

Halo > Alpha

Material transparency factor. The default value is 1.0 (non-transparent).

Halo > Color

Material color. The default value is (0.8, 0.8, 0.8) (almost white).

Halo > Size

Particle size. The default value is 0.5.

Halo > Hardness

Exponent for computing the gradient. Affects visible dimensions of particles. The default value is 50.

Halo > Rings

Use rings. Relative quantity and color can be set up.

Halo > Lines

Use lines. Relative quantity and color can be set up.

Halo > Star Tips

Use stars. The quantity of edges can be set up.

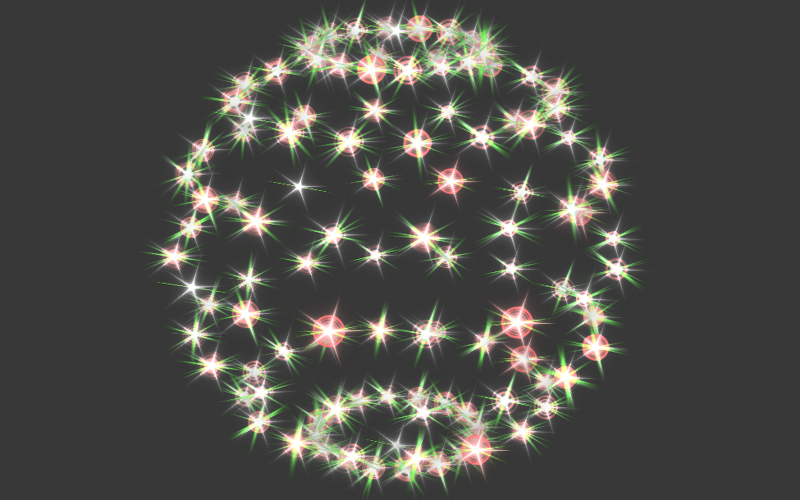

Halo > Special: Stars

Enables the starry sky rendering mode. The mesh is fixed relative to the camera. For the Sun lamp it is also required to enable the Lamp > Dynamic Intensity checkbox. Applications should set up the hours of darkness via API.

Halo > Blending Height

Height range for the fading of stars.

Halo > Minimum Height

Minimum height in the object’s local space at which stars are visible.

Methods for Stack Materials¶

The material API module includes methods to control virtually every aspect of a stack material.

Here are several examples of how the material API module can be used to perform various operations with the material of an object:

Getting object’s diffuse color:

var m_scenes    = require("scenes");
var m_material  = require("material");

...

var cube = m_scenes.get_object_by_name("Cube");

var diffuse_color = m_material.get_diffuse_color(cube, "MyMaterial");
var diffuse_color_factor = m_material.get_diffuse_color_factor(cube, "MyMaterial");
var diffuse_intensity = m_material.get_diffuse_intensity(cube, "MyMaterial");

Getting object’s specular color:

var m_scenes    = require("scenes");
var m_material  = require("material");

...

var cube = m_scenes.get_object_by_name("Cube");

var specular_color = m_material.get_specular_color(cube, "MyMaterial");
var specular_color_factor = m_material.get_specular_color_factor(cube, "MyMaterial");
var specular_hardness = m_material.get_specular_hardness(cube, "MyMaterial");
var specular_intensity = m_material.get_specular_intensity(cube, "MyMaterial");

Getting other parameters:

var m_scenes    = require("scenes");
var m_material  = require("material");

...

var cube = m_scenes.get_object_by_name("Cube");

var emit_factor = m_material.get_emit_factor(cube, "MyMaterial");
var alpha_factor = m_material.get_alpha_factor(cube, "MyMaterial");
var ambient_factor = m_material.get_ambient_factor(cube, "MyMaterial");

var extended_parameters = m_material.get_material_extended_params(cube, "MyMaterial");

Setting stack material parameters:

var m_scenes    = require("scenes");
var m_material  = require("material");
var m_rgba      = require("rgba");

...

var cube = m_scenes.get_object_by_name("Cube");

m_material.set_diffuse_color(cube, "MyMaterial", m_rgba.from_values(1.0, 0.0, 0.0, 1.0));
m_material.set_diffuse_color_factor(cube, "MyMaterial", 0.05);
m_material.set_material_extended_params(cube, "MyMaterial", {fresnel: 0,
                                                             fresnel_factor: 1.25,
                                                             parallax_scale: 0,
                                                             parallax_steps: "5.0",
                                                             reflect_factor: 0});

Methods for Node Materials¶

At the moment, API methods can only affect RGB and Value nodes. Any other type is not supported.

To change the value of a particular material node, you need:

• to get the object that uses this particular material,
• the name of the material,
• the name of the node itself
• and the name of the node group that contains the node (if there is one).

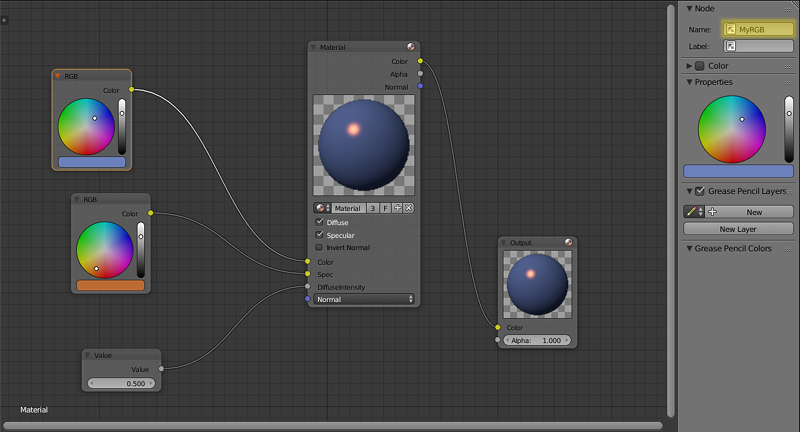

The name of a node can be viewed and changed in the upper part of the side panel at the right of the Node Editor window.

These two examples show how the parameters of a node material can be adjusted using API methods.

Getting node material parameters:

var m_scenes    = require("scenes");
var m_material  = require("material");

...

var cube = m_scene.get_object_by_name("Cube");

var rgb_node_1 = m_material.get_nodemat_rgb(cube, ["MyMaterial", "MyRGB"]);
var rgb_node_2 = m_material.get_nodemat_rgb(cube, ["MyMaterial", "MyRGB_2"]);
var value_node = m_material.get_nodemat_value(cube, ["MyMaterial", "MyValue"]);

Setting node material parameters:

var m_scenes    = require("scenes");
var m_material  = require("material");

...

var cube = m_scene.get_object_by_name("Cube");

m_material.set_nodemat_value(cube, ["MyMaterial", "MyValue"], 0.8);
m_material.set_nodemat_rgb(cube, ["MyMaterial", "MyRGB"], 0.7, 0.9, 0.3);

Same methods can also be used to adjust the scene environment, if the World object in the scene uses RGB or Value nodes. However, in this case you won’t have to use the name of the material. The other difference is that a link to a scene object has to be replaced with a link to the World object that can be retrieved with the get_world_by_name() method:

var m_scenes    = require("scenes");
var m_material  = require("material");

...

var my_world = m_scene.get_world_by_name("World");

var world_rgb = m_material.get_nodemat_rgb(my_world, ["My_RGB_3"]);

Replacing Textures¶

API methods also allow you to replace texture images. This can be done using the change_image() method from the textures module:

var m_scenes  = require("scenes");
var m_tex = require("textures");

...

var my_cube = m_scenes.get_object_by_name("Cube");

m_tex.change_image(my_cube, "My_Texture", "./test.png");

This method can be applied to replace textures used by the World object as well. However, in this case the name of the Texture node should be used instead of the name of a texture.

Activation¶

To use Inherit Material, you need two objects. First one of them is the source object that has a material that will be inherited assigned to it. The second one is the target object which has a material that you need to replace. Both object should have the Dynamic Geometry & Material option enabled (this option can be found under the Object tab, on the Rendering Properties panel).

If you are using Logic Nodes, Inherit Material can be performed with the Object->Inherit Material node. If you are using API, this can be done with the inherit_material method.

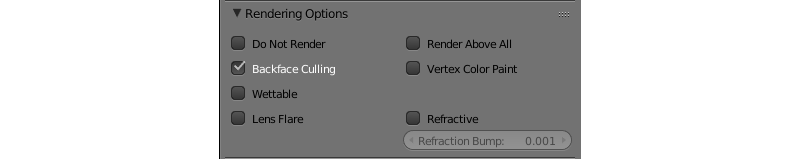

If an application requires many different materials to be changed, it might be a good approach to create a dedicated container object. It can be a simple flat mesh, like a Plane object, that has every material you might need assigned to it. This object can be hidden from the scene itself by setting the Hidden or Do Not Render option on the Object->Rendering Properties panel.
